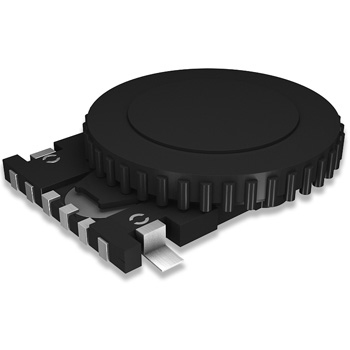

Multy Fuction Surface mount Type


1511 Series
  Rating : 1mA 10V DC
  Travel : 0.3mm

Features
  Compact with thin profile
  A push on switch with a clear-click operational feel
  An encoder with detents and excellent
  operational feel

Applications
  Menu selection and input for Audio Visual Equipment
  Memory paging and transmitting
  Portable audio devices, Personal digital assistant.

Main specifications
Rating Encoder Push on
Detent(pulse) /Travel 15 pulses 0.3mm
Contact Resistance 1 Ω max. 100mΩ max.
Operating Force 1mN·m to 10mN·m 500gf
Operating Life 100,000 Cycles
