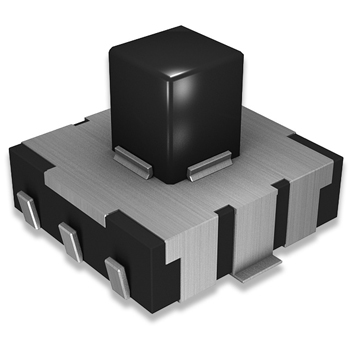

Multy Fuction Surface mount Type ( 6.1 X 6.5mm )

1502 Series
  Rating : 20mA 15V DC
  Travel
  4-directions & center push type.
  Center push : 0.15mm

Features
  Surface mount type tact switch.
  4-directions & center push type.
  Outline dimension 6.1mm x 6.5mm and 5.0 mm height.

Applications
  Operating switches in all types of electronic equipment
  Mobile phones, PDA equipments, MP3P set, Digital Camera
  Portable audio devices, Personal digital assistant.
  Operating signal input switches, etc.


Main specifications
Rating 20mA 15V DC
Travel 4-direction : 5¢ª Center push : 0.15mm
Contact Resistance 200 m§Ù max.
Operating temperature '-20¡É ~ 70¡É ( 45% ~ 85% RH )
Bounce 10 m sec max.
Operating Force 4-direction : 150gf Center push : 280gf
Operating Life 300,000 Cycles
