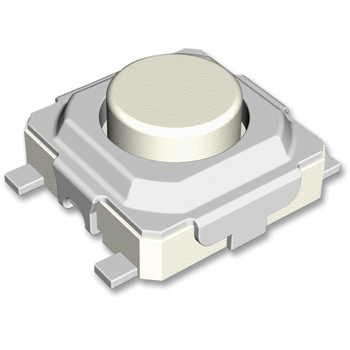

Surface mount Type ( 3.3 X 3.3 mm )


1184 Series
  Rating : 50mA 12V DC
  Travel : 0.13¡¾0.1mm

Features
  Surface mount type tact switch..
  Outline dimension 3.3mm x 3.3mm
  and 1.5 mm height.
  Dust & Moisture protective structure.

Applications
  Various controls for devices in automotive.
  Controls for image/sound devices, radio equipment.
  Operating signal input switches, etc.

Main specifications
Rating 50mA 12V DC
Travel 0.13¡¾0.1mm
Contact Resistance 100 m§Ù max.
Operating temperature '-20¡É ~ 70¡É ( 45% ~ 85% RH )
Bounce 10 m sec max.
Operating Force 160gf 250gf
Operating Life 100,000 Cycles
