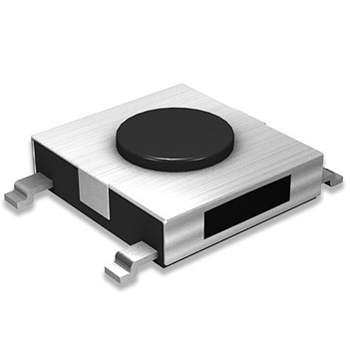

Surface mount Type ( 4.5 X 4.6 mm )


1127 Series
  Rating : 50mA 12V DC
  Travel : 0.2¡¾0.1mm

Features
  Surface mount type tact switch.
  Outline dimension 4.5mm x 4.6mm
  and 1.5 mm or 4.3mm height.

Applications
  Operating switches in all types of electronic equipment
  Office devices, Sound devices, MP3P, PDA set.
  Camcoders, Headphone stereo set.
  Operating signal input switches, etc.

Main specifications
Rating 50mA 12V DC
Travel 0.2¡¾0.1mm
Contact Resistance 100 m§Ù max.
Operating temperature '-20¡É ~ 70¡É ( 45% ~ 85% RH )
Bounce 10 m sec max.
Operating Force 160gf 250gf
Operating Life
100,000 Cycles 50,000 Cycles
