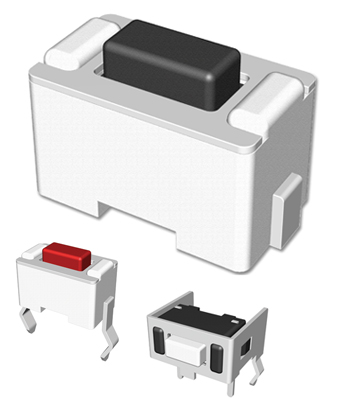

| Snap-in
& Surface mount Type ( 6 X 3.5mm ) |
 |
|
1101 Series |
 |
Rating : 50mA 12V DC |
 |
|
Travel : 0.25±0.1mm |
|
Features |
|
Snap-in & Surface mount type tact switch. |
|
Outline dimension 6.0mm x 3.5mm |
|
and 4.3mm or 5.0mm height. |
|
Vertical and horizontal operating direction. |
|
Applications |
|
Various controls for devices in automotive. |
|
Controls for image/sound devices, radio equipment. |
|
Operating signal input switches, etc. |
|
Main specifications |
|
| Rating |
50mA
12V DC |
| Travel |
0.25±0.1mm |
| Contact Resistance |
100
mΩ max. |
| Operating
temperature |
'-20℃
~ 70℃ ( 45% ~ 85% RH ) |
| Bounce |
10
m sec max. |
| Operating
Force |
130gf |
180gf |
250gf |
| Operating
Life |
| 50,000 Cycles |
30,000 Cycles |
|
|
|
|
 |
|
|
|
