A push on switch with a clear-click operational feel
An encoder with detents and excellent
operational feel
Applications
Menu selection and input for Audio Visual Equipment
Memory paging and transmitting
Portable audio devices, Personal digital assistant.
Main specifications
Rating
Encoder
Push
on
Detent(pulse)
/Travel
15 pulses
0.3mm
Contact Resistance
1 Ω max.
100mΩ max.
Operating
Force
1mN·m to 10mN·m
500gf
Operating
Life
100,000 Cycles
IL SWITCH Co., Ltd.
103/1212 Bucheon Technopark Ssangyong 3, #36-1 Samjeong Dong, Ojeong Ku, Bucheon City, Gyounggi Province, Korea
TEL +82-32)624-3357 FAX +82-32)624-3358 copright ⓒ ilswitch.com
all rights reserved.

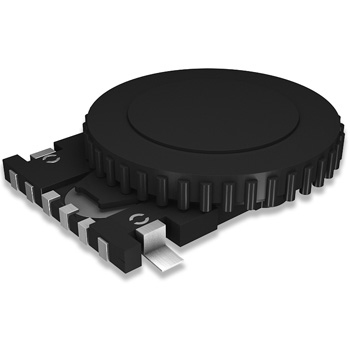

1511 Series
Rating : 1mA 10V DC
Features
