| Multy
Fuction Surface mount Type ( 6.1 X 6.5mm ) |
 |
|

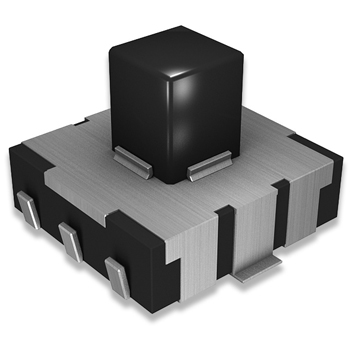

1502 Series |
 |
Rating : 20mA 15V DC |
 |
Travel
4-directions & center push type.
Center push : 0.15mm |
|
Features |
|
Surface mount type tact switch. |
|
4-directions & center push type. |
|
Outline dimension 6.1mm x 6.5mm and 5.0 mm height. |
|
Applications |
|
Operating switches in all types of electronic equipment |
|
Mobile phones, PDA equipments, MP3P set, Digital Camera |
|
Portable audio devices, Personal digital assistant. |
|
Operating signal input switches, etc. |
|
| |
|
|
Main specifications |
|
| Rating |
20mA
15V DC |
| Travel |
4-direction
: 5˚ |
Center push
: 0.15mm |
| Contact Resistance |
200
mΩ max. |
| Operating
temperature |
'-20℃
~ 70℃ ( 45% ~ 85% RH ) |
| Bounce |
10
m sec max. |
| Operating
Force |
4-direction
: 150gf |
Center push
: 280gf |
| Operating
Life |
300,000
Cycles |
|
|
|
 |
|
|
|
| |
 |
| |
 |
