아이엘전자
 |

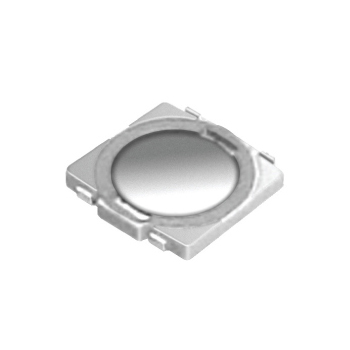

| Surface
mount Type (Ultra Compact Type) |
 |
|
1197 Series |
 |
Rating
1197 : 50mA 12V DC
1198 : 20mA 15V DC
1199 : 50mA 12V DC |
 |
Travel
1197 : 0.2±0.1mm
1198 : 0.2±0.1mm
1199 : 0.15±0.1mm |
|
Features |
|
Surface mount type tact switch. |
|
Dust & Moisture protective structure. |
|
Offering compact, Light weight. |
|
Applications |
|
Operating switches in all types of electronic equipment |
|
Office devices, Sound devices, MP3P, PDA set. |
|
Camcoders, Headphone stereo set. |
|
Operating signal input switches, etc. |
|
| |
|
|
Main specifications |
|
| |
1197 |
1198 |
1199 |
| Rating |
50mA
12V DC |
20mA
15V DC |
50mA
12V DC |
| Travel |
0.2±0.1mm |
0.15±0.1mm |
| Contact Resistance |
100
mΩ max. |
| Operating
temperature |
'-20℃
~ 70℃ ( 45% ~ 85% RH ) |
| Bounce |
10
m sec max. |
| Operating
Force |
160gf (except
1198) |
250gf |
350gf (only
1198) |
| Operating
Life |
100,000
Cycles |
|
|
|
 |
|
|
|
| |
 |
| |
 |
