> 제품소개 > Encoder |
| |
|
| |
아이엘전자
 |
| Multy
Fuction Snap-in & Surface mount Type |
 |
|

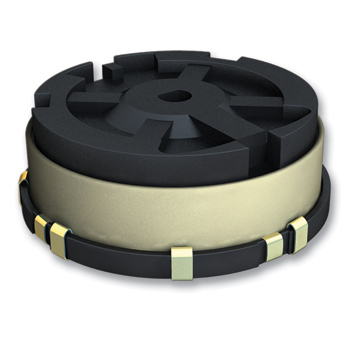

SM008/016 Series |
 |
Rating : 10mA 5V DC |
 |
|
Travel : 0.5mm Min. |
|
Features |
|
A push on switch with a clear-click operational feel |
|
An encoder with detents and excellent |
|
operational feel |
|
4-directions & center push type. |
|
Applications |
|
Scroll of Menu and input for Audio Visual Equipment |
|
Level controls for car audio & navigation system |
|
Portable audio devices, Personal digital assistant. |
|
| |
|
|
Main specifications |
|
| |
Encoder |
SM016GJ50 |
| Encoder |
Push
on |
Encoder |
Push
on |
| Detent(pulse)
/Travel |
8
detent(4pulse) |
Center
: 0.15mm |
16
detent(8pulse) |
Center
: 0.15mm |
| 4-direction
: 5˚±3˚ |
4-direction
: 5˚±3˚ |
| Operating
Force |
150gf |
Center
: 500gf |
150gf |
Center
: 500gf |
| 4-direction
: 400gf |
4-direction
: 400gf |
| Rating |
2mN·m |
| Contact Resistance |
15,000 Cycles20,000 Cycles |
| Operating
Life |
30,000
Cycles |
|
|
|
 |
