| Snap-in
& Surface mount Type ( 9 X 3.6 mm ) |
 |
|

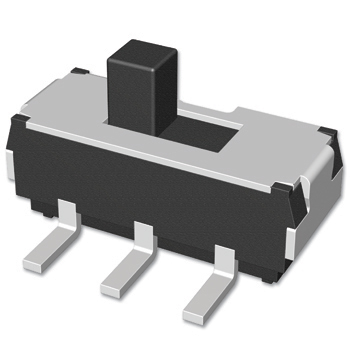

2235 Series |
 |
Rating : 0.3A 6V DC |
 |
|
Travel : 2mm |
|
Features |
|
Snap-in & Surface mount type slide switch. |
|
Outline dimension 9.0mm x 3.6mm |
|
Vertical and Horizontal operating direction. |
|
Applications |
|
For selecting modes of digital camcorders, digital cameras. |
|
Office devices, Sound devices, TV set, DVD set. |
|
Operating signal input switches, etc. |
|
Main specifications |
|
| Rating |
0.3A
6V DC |
| Travel |
2mm |
| Contact
Resistance |
70 mΩ max.
(After lifetime : 130 mΩ max.) |
| Operating
temperature |
'-20℃ ~ 70℃
( 45% ~ 85% RH ) |
| Operating
Force |
200gf |
| Operating
Life |
10,000 Cycles |
|
|
|
 |
|
|
|
