| Snap-in
& Surface mount Type ( 8.8 X 3.0 mm ) |
 |
|

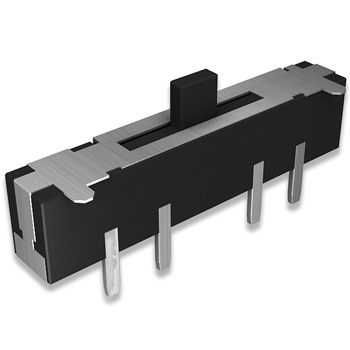

1312 Series |
 |
Rating : 0.3A 4V DC |
 |
|
Travel : 2mm |
|
Features |
|
Snap-in & Surface mount type slide switch. |
|
Outline dimension 12.5mm x 3mm |
|
Double or single side Recoil operating type |
|
Applications |
|
For keylocking mobile phones, MP3P. |
|
For selecting modes of digital camcorders, digital cameras. |
|
Operating signal input switches, etc. |
|
| |
|
|
Main specifications |
|
| Rating |
0.3A
4V DC |
| Travel |
2mm |
| Contact
Resistance |
70 mΩ max.
(After lifetime : 130 mΩ max.) |
| Operating
temperature |
'-20℃ ~ 70℃
( 45% ~ 85% RH ) |
| Operating
Force |
Double side
recoil type : ⓑ→ ⓐ, ⓒ : 250gf |
| Single side
recoil type : ⓐ ↔ ⓑ : 200gf / ⓑ ↔ ⓒ : 150gf |
| Operating
Life |
10,000 Cycles |
|
|
|
 |
|
|
|
