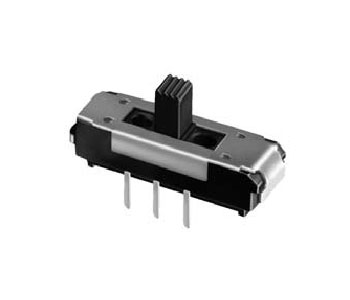

Snap-in Type ( 14.5 X 5 mm )


1307 Series
  Rating : 0.1A 12V DC
  Travel : 2mm

Features
  Snap-in type slide switch.
  Outline dimension 14.5mm x 5mm
  Travel : 2.0mm
  Horizontal operating direction.

Applications
  For selecting modes of door-phone, telephone
  Office devices, Sound devices, TV set, DVD set.
  Operating signal input switches, etc.

Main specifications
Rating 0.1A 12V DC
Travel 2mm
Contact Resistance 70 m§Ù max.
(After lifetime : 130 m§Ù max.)
Operating temperature '-20¡É ~ 70¡É ( 45% ~ 85% RH )
Operating Force ¨Î¡æ ¨Í, ¨Ï : 300gf ¨Í, ¨Ï¡æ ¨Î : 200gf
Operating Life 10,000 Cycles
