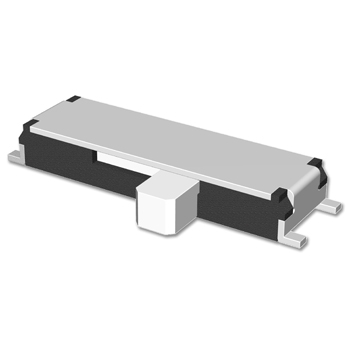

Surface mount Type ( 9.7 X 2.6mm )


1300 Series
  Rating : 0.3 A 4V DC
  Travel : 2mm

Features
  Surface mount type slide switch.
  Outline dimension 9.7mm x 2.6mm
  With guide boss structure.

Applications
  For keylocking mobile phones, MP3P.
  For selecting modes of digital camcorders, digital cameras.
  Operating signal input switches, etc.

Main specifications
Rating 0.3A 4V DC
Travel 2 mm
Contact Resistance 70 mΩ max.
(After lifetime : 130 mΩ max.)
Operating temperature '-20℃ ~ 70℃ ( 45% ~ 85% RH )
Operating Force ⓑ→ ⓐ, ⓒ : 150gf ⓐ, ⓒ→ ⓑ : 200gf
Operating Life 10,000 Cycles
