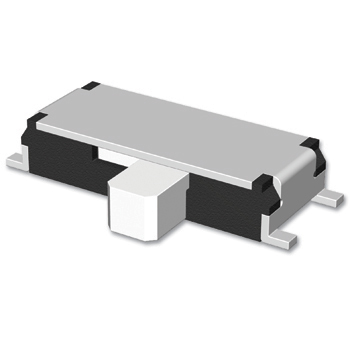

Surface mount Type ( 6.7 X 2.6mm )


1290 Series
  Rating : 0.3 A 4V DC
  Travel : 1.5mm

Features
  Surface mount type slide switch.
  Outline dimension 6.7mm x 2.6mm
  With guide boss structure.

Applications
  For keylocking mobile phones, MP3P.
  For selecting modes of digital camcorders, digital cameras.
  Operating signal input switches, etc.

Main specifications
Rating 0.3 A 4V DC
Travel 1.5mm
Contact Resistance 70 mΩ max.
(After lifetime : 130 mΩ max.)
Operating temperature '-20℃ ~ 70℃ ( 45% ~ 85% RH )
Operating Force 150gf
Operating Life 10,000 Cycles
