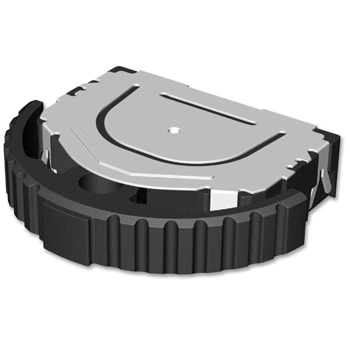

Surface mount Type ( 3-direction operation type)


1512 Series
  Rating : 10mA 5V DC
  Travel : 0.85mm Min.

Features
  Lever and push operation type lever switch.
  Feedback for push and side action.
  Compact size allows high-density components mounting.
  With guide boss structure.

Applications
  Compact, portable units.
  For selecting modes of digital camcorders, digital cameras.
  Mobile devices such as PDA, mobile phones.
  Operating signal input switches, etc.

Main specifications
Rating 10mA 5V DC
Travel 0.85mm Min.
Operating temperature '-20℃ ~ 70℃ ( 45% ~ 85% RH )
Operating Force Lever portion : 70gf Push portion : 200gf
Operating Life 100,000 Cycles
