Surface
mount Type ( 3-direction operation type) |
![](img/images/spacer.gif) |
|

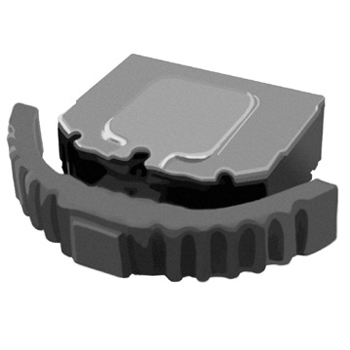

1306 Series |
![](img/images/pruduct_detail_09.jpg) |
Rating : 10mA 5V DC |
![](img/images/pruduct_detail_16.jpg) |
Travel : 0.5mm Min. |
![](img/images/pruduct_detail_16.jpg) |
Features |
Lever and push operation type lever switch. |
Feedback for push and side action. |
Compact size allows high-density components mounting. |
With guide boss structure. |
Applications |
Compact, portable units. |
For selecting modes of digital camcorders, digital cameras. |
Mobile devices such as PDA, mobile phones. |
Operating signal input switches, etc. |
Main specifications |
|
Rating |
10mA
5V DC |
Travel |
0.5mm
Min. |
Operating
temperature |
'-20¡É
~ 70¡É ( 45% ~ 85% RH ) |
Operating
Force |
Lever portion
: 150gf |
Push portion
: 250gf |
Operating
Life |
100,000 Cycles |
|
|
|
