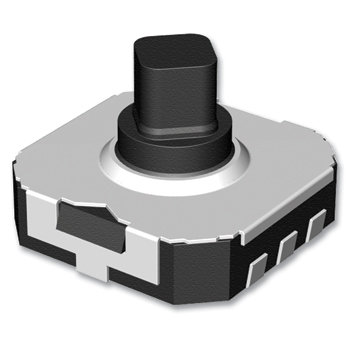

Multy Fuction Surface mount Type ( 7.3 X 7.5mm )

1501 Series
  Rating : 50mA 12V DC
  Travel
  4-direction : 0.25mm
  Center push : 0.15mm

Features
  Surface mount type tact switch.
  4-directions & center push type.
  Outline dimension 7.3mm x 7.5mm and 5.0 mm height.
  Octagonal shape.

Applications
  Operating switches in all types of electronic equipment
  Mobile phones, PDA equipments, MP3P set, Digital Camera
  Portable audio devices, Personal digital assistant.
  Operating signal input switches, etc.


Main specifications
Rating 50mA 12V DC
Travel 4-direction : 0.25mm Center push : 0.15mm
Contact Resistance 100 m§Ù max.
Operating temperature '-20¡É ~ 70¡É ( 45% ~ 85% RH )
Bounce 10 m sec max.
Operating Force 4-direction : 130gf Center push : 250gf
Operating Life 200,000 Cycles
