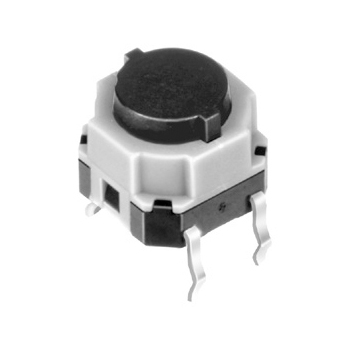

Snap-in & Soft OverstrokeType ( 8.5 X 8.5 mm )


2175 Series
  Rating : 50mA 12V DC
  Travel : 1.0 mm

Features
  Snap-in type tact switch.
  Outline dimension 8.5mm x 8.5mm and 7.1mm height.
  Silicon Rubber knob type
  Dust & Moisture protective structure.
  Soft & overstroke feeling operation

Applications
  Operating switches in all types of electronic equipment
  Auto-tooth brush, Bidet, Sound devices, TV set, DVD set.
  Operating signal input switches, etc.

Main specifications
Rating 50mA 12V DC
Travel 1.0 mm
Contact Resistance 100 m§Ù max.
Operating temperature '-20¡É ~ 70¡É ( 45% ~ 85% RH )
Circuit 2C-1P
Operating Force 130gf
Operating Life 500,000 Cycles
