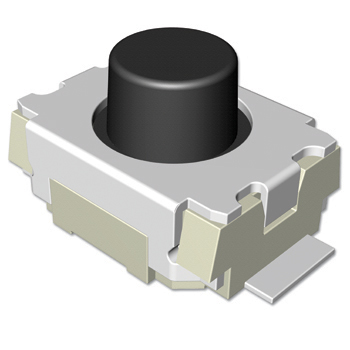

Surface mount Type ( 3.9 X 2.9 mm )


1185 Series
  Rating : 50mA 12V DC
  Travel : 0.13±0.1mm

Features
  Surface mount type tact switch.
  Outline dimension 3.9mm x 2.9mm
  Dust & Moisture protective structure.

Applications
  Various controls for devices in automotive.
  Controls for image/sound devices, radio equipment.
  Operating signal input switches, etc.

Main specifications
Rating 50mA 12V DC
Travel 0.13±0.1mm
Contact Resistance 100 mΩ max.
Operating temperature '-20℃ ~ 70℃ ( 45% ~ 85% RH )
Bounce 10 m sec max.
Operating Force 160gf 250gf
Operating Life 100,000 Cycles
