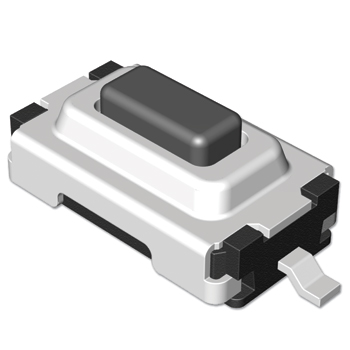

Surface mount Type ( 6 X 3.6 mm )


1181 Series
  Rating : 50mA 12V DC
  Travel : 0.25±0.1mm

Features
  Surface mount type tact switch.
  Outline dimension 6.0mm x 3.6mm
  and 2.5 mm height.
  Dust & Moisture protective structure.

Applications
  Various controls for devices in automotive.
  Controls for image/sound devices, radio equipment.
  Operating signal input switches, etc.

Main specifications
Rating 50mA 12V DC
Travel 0.25±0.1mm
Contact Resistance 100 mΩ max.
Operating temperature '-20℃ ~ 70℃ ( 45% ~ 85% RH )
Bounce 10 m sec max.
Operating Force 130gf 180gf 250gf
Operating Life
50,000 Cycles 30,000 Cycles
