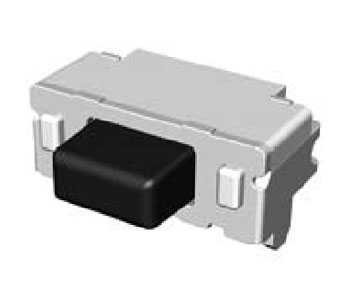

Side
push Surface mount Type ( 3.6 X 1.9mm ) |
![](img/images/spacer.gif) |
|
1180 Series |
![](img/images/pruduct_detail_09.jpg) |
Rating : 50mA 12V DC |
![](img/images/pruduct_detail_16.jpg) |
Travel : 0.17¡¾0.1mm |
![](img/images/pruduct_detail_16.jpg) |
Features |
Surface mount type tact switch. |
Outline dimension 3.6mm x 1.9mm |
and 1.55 mm height. |
Horizontal operating direction |
Ultra miniature size |
Applications |
Operating switches in all types of electronic equipment |
Mobile phones, PDA equipments, MP3P set, Digital Camera |
Portable audio devices, Personal digital assistant. |
Operating signal input switches, etc. |
Main specifications |
|
Rating |
50mA
12V DC |
Travel |
0.17¡¾0.1mm |
Contact Resistance |
100 m§Ù max. |
Operating
temperature |
'-20¡É ~ 70¡É
( 45% ~ 85% RH ) |
Bounce |
10 m sec max. |
Operating
Force |
160gf |
Operating
Life |
30,000 Cycles |
|
|
|
