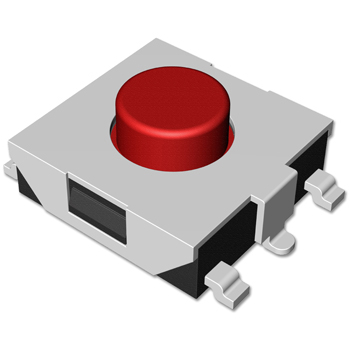

Snap-in & Surface mount Type ( 6.2 X 6.2 mm )


1157 Series
  Rating : 50mA 12V DC
  Travel : 0.25±0.1mm

Features
  Surface mount type tact switch.
  Outline dimension 6.2mm x 6.2mm and
  2.5mm or 3.1mm height.
  Available with anti-ESD ground cover.

Applications
  Various controls for devices in automotive.
  Controls for image/sound devices, radio equipment.
  Operating signal input switches, etc.

Main specifications
Rating 50mA 12V DC
Travel 0.25±0.1mm
Contact Resistance 100 mΩ max.
Operating temperature '-20℃ ~ 70℃ ( 45% ~ 85% RH )
Bounce 10 m sec max.
Operating Force 130gf 160gf 250gf
Operating Life
100,000 Cycles 50,000 Cycles
