Side

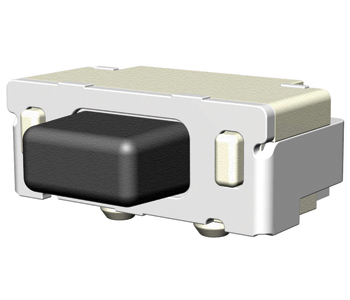

push Surface mount Type ( 4.5 X 2.3mm ) |
![](img/images/spacer.gif) |
|
1100 (304) Series |
![](img/images/pruduct_detail_09.jpg) |
Rating : 50mA 12V DC |
![](img/images/pruduct_detail_16.jpg) |
Travel : 0.2 ¡¾ 0.1mm |
![](img/images/pruduct_detail_16.jpg) |
Features |
Surface mount type tact switch. |
Outline dimension 4.5mm x 2.3mm and 1.8 mm height. |
Horizontal operating direction |
Anti-flux penetration |
Applications |
Operating switches in all types of electronic equipment |
Mobile phones, PDA equipments, MP3P set, Digital Camera |
Portable audio devices, Personal digital assistant. |
Operating signal input switches, etc. |
Main specifications |
|
Rating |
50mA
12V DC |
Travel |
0.2¡¾0.1mm |
Contact Resistance |
100
m§Ù max. |
Operating
temperature |
'-20¡É
~ 70¡É ( 45% ~ 85% RH ) |
Bounce |
10
m sec max. |
Operating
Force |
160gf |
Operating
Life |
100,000
Cycles |
|
|
|
