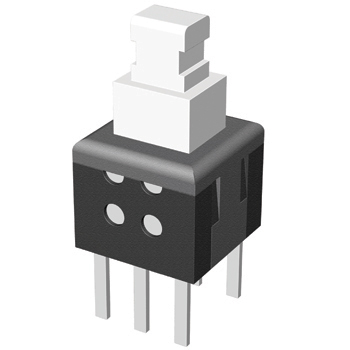

Push Switch


PUSH SWITCH
  Rating : 0.1A 12V DC
  Contact Resistance : 70mΩ max.

Features
  Self Lock, Non Lock type.
  Snap in type.

Applications
  Printers and peripheral devices.
  TVs, plasma display panel. LCT TVs.
  Mini component stereos and audio mixers.


Main specifications
  2216 Series APS Series
APS01 APS02
Rating 0.1A 30V DC 1.2A 6V 1A 12V DC
Contact Resistance 70mΩ max. 25mΩ max. 20mΩ max.
Operating temperature '-20℃ ~ 70℃ ( 45% ~ 85% RH )
Operating Life 10,000 Cycles 20,000 Cycles
