아이엘전자
 |

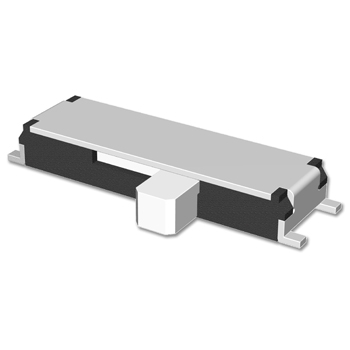

| Surface
mount Type ( 9.7 X 2.6mm ) |
 |
|
1300 Series |
 |
Rating : 0.3 A 4V DC |
 |
|
Travel : 2mm |
|
Features |
|
Surface mount type slide switch. |
|
Outline dimension 9.7mm x 2.6mm |
|
With guide boss structure. |
|
Applications |
|
For keylocking mobile phones, MP3P. |
|
For selecting modes of digital camcorders, digital cameras. |
|
Operating signal input switches, etc. |
|
Main specifications |
|
| Rating |
0.3A
4V DC |
| Travel |
2 mm |
| Contact
Resistance |
70
mΩ max.
(After lifetime : 130 mΩ max.) |
| Operating
temperature |
'-20℃
~ 70℃ ( 45% ~ 85% RH ) |
| Operating
Force |
ⓑ→ ⓐ, ⓒ : 150gf |
ⓐ, ⓒ→ ⓑ : 200gf |
| Operating
Life |
10,000 Cycles |
|
|
|
 |
|
|
|
| |
 |
| |
 |
