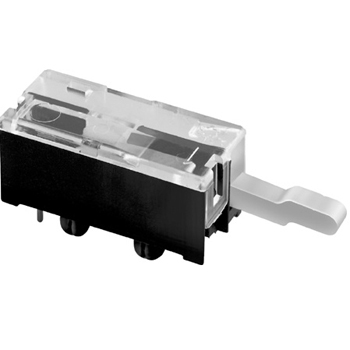

Telephone Hook Switch


1240 Series
  Rating : 0.2A 48V DC
  Contact Resistance : 50mΩ Max.

Features
  Outline dimension 22mm x 9.6mm
  Gold Plate Terminal Type

Applications
  All telephone.
  video phone equipments.

Main specifications
Rating 0.2A 48V DC
Contact Resistance 50mΩ Max.
Operating temperature '-20℃ ~ 70℃ ( 45% ~ 85% RH )
Operating Force 70gf Max.
Operating Life 200,000 Cycles
