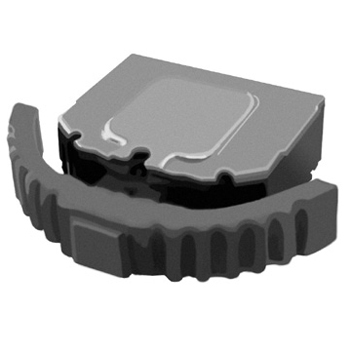

| Surface
mount Type ( 3-direction operation type) |
 |
|
1306 Series |
 |
Rating : 10mA 5V DC |
 |
|
Travel : 0.5mm Min. |
|
Features |
|
Lever and push operation type lever switch. |
|
Feedback for push and side action. |
|
Compact size allows high-density components mounting. |
|
With guide boss structure. |
|
Applications |
|
Compact, portable units. |
|
For selecting modes of digital camcorders, digital cameras. |
|
Mobile devices such as PDA, mobile phones. |
|
Operating signal input switches, etc. |
|
Main specifications |
|
| Rating |
10mA
5V DC |
| Travel |
0.5mm
Min. |
| Operating
temperature |
'-20℃
~ 70℃ ( 45% ~ 85% RH ) |
| Operating
Force |
Lever portion
: 150gf |
Push portion
: 250gf |
| Operating
Life |
100,000 Cycles |
|
|
|
 |
|
|
|
| |
 |
| |
 |
