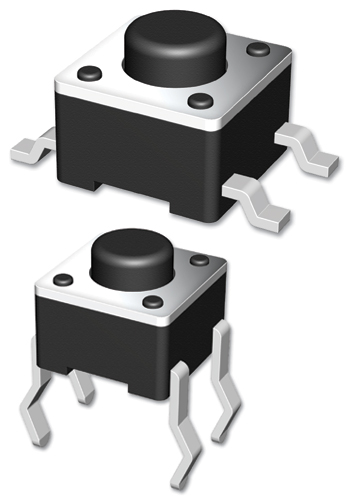

Snap-in & Surface mount Type ( 4.5 X 4.5 mm )


1109 (304) Series
  Rating : 50mA 12V DC
  Travel : 0.25¡¾0.1mm

Features
  Snap-in & Surface mount type tact switch.
  Outline dimension 4.5mm x 4.5mm
  and 3.8mm or 7.0mm height.
  Vertical operating direction.

Applications
  Various controls for devices in automotive.
  Controls for image/sound devices, radio equipment.
  Operating signal input switches, etc.

Main specifications
Rating 50mA 12V DC
Travel 0.25¡¾0.1mm
Contact Resistance 100 m§Ù max.
Operating temperature '-20¡É ~ 70¡É ( 45% ~ 85% RH )
Bounce 10 m sec max.
Operating Force 160gf 250gf
Operating Life 50,000 Cycles 30,000 Cycles
