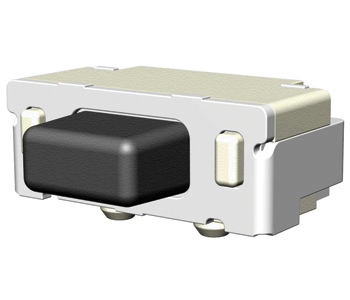

| Side
push Surface mount Type ( 4.5 X 2.3mm ) |
 |
|
1100 (304) Series |
 |
Rating : 50mA 12V DC |
 |
|
Travel : 0.2 ± 0.1mm |
|
Features |
|
Surface mount type tact switch. |
|
Outline dimension 4.5mm x 2.3mm and 1.8 mm height. |
|
Horizontal operating direction |
|
Anti-flux penetration |
|
Applications |
|
Operating switches in all types of electronic equipment |
|
Mobile phones, PDA equipments, MP3P set, Digital Camera |
|
Portable audio devices, Personal digital assistant. |
|
Operating signal input switches, etc. |
|
Main specifications |
|
| Rating |
50mA
12V DC |
| Travel |
0.2±0.1mm |
| Contact Resistance |
100
mΩ max. |
| Operating
temperature |
'-20℃
~ 70℃ ( 45% ~ 85% RH ) |
| Bounce |
10
m sec max. |
| Operating
Force |
160gf |
| Operating
Life |
100,000
Cycles |
|
|
|
 |
|
|
|
| |
 |
| |
 |
